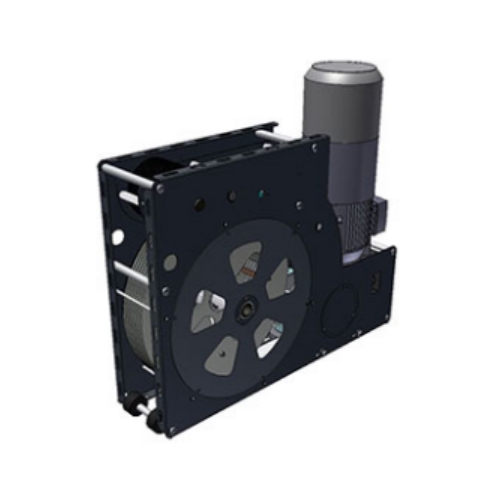

CM 350 B – theatrical rigging system
Art.Nr. 342.350
This is the compact and cost efficient solution for theatrical rigging
With the new “COMPACT” motor system, MTS is offering a new, cost efficient model which, thanks to its narrow design and low weight, can also be used as a conversion kit for manual contractions while retaining the drain rollers. With a payload of 350 kg, the “COMPACT” can also handle larger weights without problems with a stroke of up to 10 m. It can also be used as a point hoist. More than 12 ropes can be lead out the rigging system, and is therefore particularly suited to move scenery in the theater. Depending on requirements, MTS rigging systemscan be equipped according to the requirements of Sil1 – Sil3.
The extensions correspond to the relevant safety regulations DGUV regulation 17 (formerly BGV C1, formerly VBG 70) as well as DIN 56950-2 (formerly DIN 15560)
The highlights at a glance:
- Dynamically self-locking gearbox
- Dirting from -30 ° C to + 150 ° C
- Slack rope / rope break detection per load carrying device
- Operational and emergency limit switch (top and bottom)
Technical specifications:
- Medium: 6 mm wire rope, max. 12 ropes
- Stroke: 10 m standard, more on request
- vHub: max. 1 m / s
- Engine power: 4,5 kw
- Payload: 350/500/750 kg (depending on model)
- Weight: approx. 160 kg
- Size: 930/715/230 mm (depending on the version)
- Reserve technical changes.
Technical drawing:
Accessories
Art.Nr. 350.900 FCP 900
Art.Nr. 350.026 RFS-TC 4
