Fix Droparms – DAF 25 to150



DAF 25 – item no. 301025

DAF 50 – item no. 301050 (standard length)

DAF 75 – item no. 301075

DAF 100 – item no. 301100 (standard length)

DAF 150 – item no. 301150

Note: Non-standard lengths may have a longer delivery-time.

Fixed Droparms – DAF 25 to 150

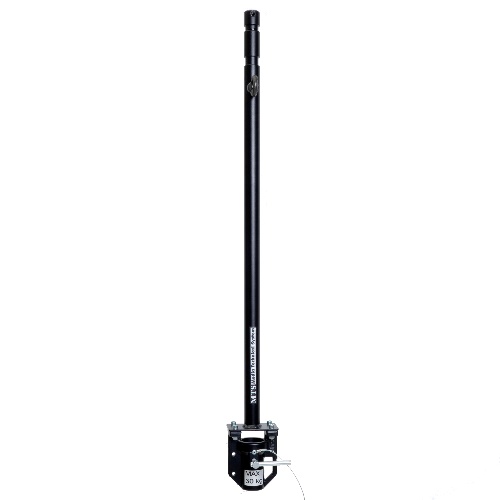

Droparm extension with fixed length for the suspension of lighting, audio, and video equipment.

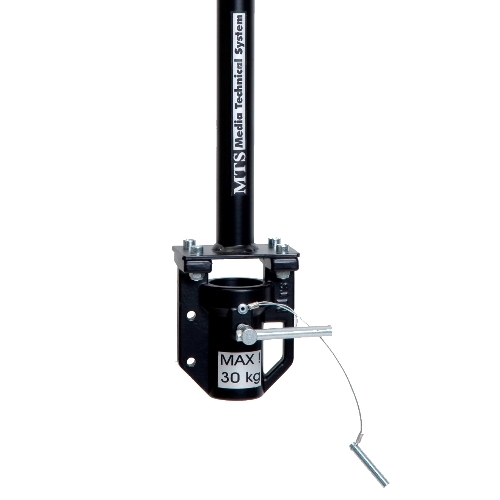

The load capacity of the drophs is 30 kg. The suspension is via a 28 mm DIN TV socket. A 29mm DIN TV sleeve with an eyelet for safety ropes is provided for load acceptance. The tube and TV stud are turned in one piece of steel.

Customized designs are available upon request.

All products from MTS – Media Technical System fulfill the relevant safety regulations DGUV regulation 17 (formerly BGV C1, formerly VBG 70) as well as DIN 56950-2 (formerly DIN 15560)

Product highlights

Technical data
Equipment

 DOWNLOAD Productinformationsheet DAF 25-150

The highlights at a glance:
  • Carrying capacity up to max. 30 kg
  • Weight approx. 2.5 – 3.5 kg depending on model
  • DIN TV socket (29 mm) for load attachment
Technical specifications:

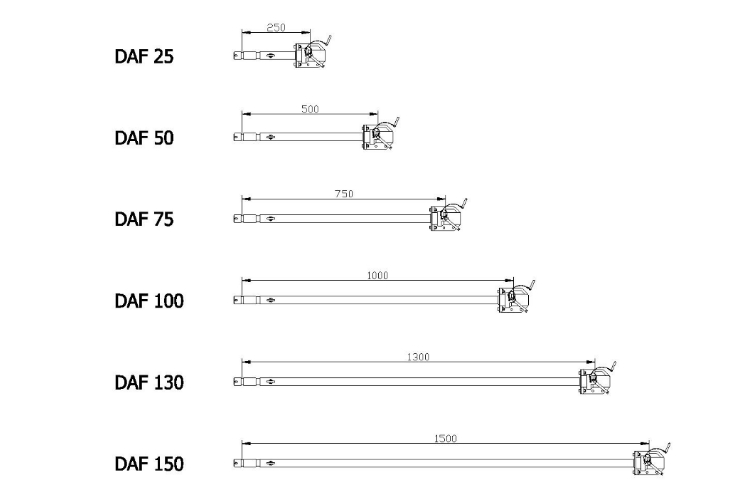

Technical drawing:
